USB Standards

The latest changes in the USB ecosystem can look confusing.

Every new generation of connectors is a burden for hardware engineers, firmware authors, and users, and requires efforts for adoption.

Why introducing USB-C? What are the Alternate Modes? What has Thunderbolt to do with it? What is that merged Thunderbolt 4 and USB4 thing?

the various usb logos

USB, the Star Wars connector?

For those of us who saw any of the Star Wars movies, series, and whatnot they do of it today, one detail could have catched the eye of the tech-enthusiast which is very close to USB.

Star Wars has droids: human looking droids, kettle looking droids, ball looking droids...

Protocol droid mostly communicate to humans and other living beings like Z6-PO; but others mostly communicate to machines, and only produce beeps sounds that characters seems to understand, like R2D2.

To communicate with machines, like a space ship, an access terminal for servers, a door controller, a storage computer... there is always this same circular-shaped plug, regardless of what he had to communicate with:

R2-D2-plug

Is it not an illustration of what USB strives to be? Unifying the connectors onto a single plug has always been the motive of the Universal Serial Bus.

Merging connectors over and again

Quite a few protocols were absorbed by the ubiquitous USB octopus as early as USB 1.0:

The list goes on.

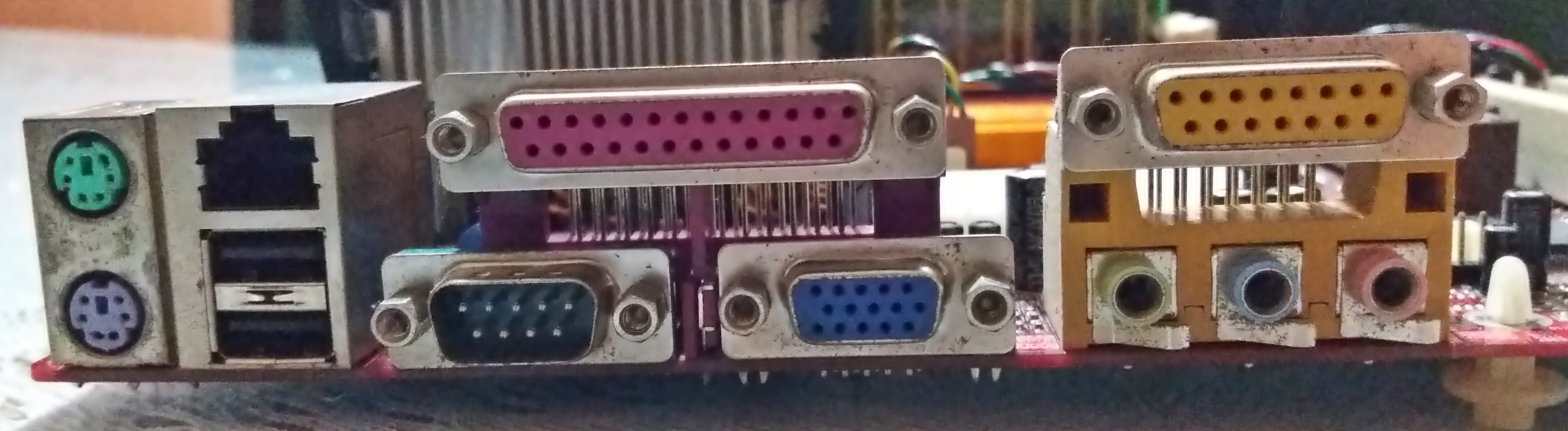

Back Panel Connectors PCChips M925LR Motherboard

I do like these many sturdy old plugs though!

USB Type-C connector

It was a great relief to many when the USB Type-C connectors was unveiled: finally a connector that could be plugged on either direction!

The USB Type-C connector did not introduce an upgrade to the USB protocol: it is a mere connector specification, which might be used for any purpose, but is most often used for USB.

In fact, the USB Type-C connector is used for many more protocols that are not USB in any kind of way!

A lot of protocol work groups were attracted by this convenient connector, and many decided to adopt it for their own wire protocol.

USB was a standard protocol that aimed to unify protocols onto a common BUS, with USB Type-C, it becomes a standard connector that unify connectors for different protocols!

For the end-user, that means fewer time looking for the right cable and right socket, but since the connector is used for different protocols, how to be sure the cable is plugged at the right place? One may now plug a Type-C printer to a Type-C display port of a computer.

USB Type-C pinout

USB Type-C Alternate Mode

Since the same plug carries many protocols directly with their own way to use the many pins of the Type-C connector, there has to be a way to make the computer select the right protocol once the cable is plugged.

This is what Alternate Mode is for. It is not a feature of USB 3.2 or any protocol version, it is a feature of the Type-C connector.

These are the three main Alternate Mode available.

This shows by and large that the USB Type-C connector has nothing to do with USB anymomre, and its use for the USB protocol is only one of its purposes.

one does not simply connect a displayport screen via usb 3.2, one plugs a displayport screen to a displayport type-c connector

While connecting a DisplayPort screen in Alternate Mode, there is not a single bit of USB transmitted.

USB 1.0, USB 2.0, USB 3.0, USB 3.1, USB 3.2

The other versions of USB are mostly incremental improvement over USB 1.0, improving speed without changing the basics.

Each version can use any of the USB connectors, Type-A, Type-B, Type-C, without adaptation. The various USB X.Y are the logical protocols, and the various Type-? are the physical port specifications.

Although, the USB 3.2 started to use an extra pin of the Type-C connector in order to reach higher speeds.

And Thunderbolt in all that?

Thunderbolt is another take on plugging anything to a computer, and was also around since long. Instead of defining communication modes, it focuses on tunneling two existing protocols:

PCIe, for plugging graphic, network, storage, or other extension cards to the processor.

DisplayPort, for plugging 4k displays.

Oops! Two ways to plug a screen through DisplayPort on a Type-C connector: Directly with DisplayPort Alternate Mode; or via Thunderbolt Alternate Mode which further encapsulates DisplayPort.

Reminder: Alternate Mode is not an encapsulation: it is a way to select which protocol to talk directly over Type-C. Thunderbolt is an encapsulation: a wrapping protocol onto which is encoded another protocol.

By comparing with TCP/IP Thunderbolt is like ethernet and PCIe is like IP. whereas using DisplayPort Alternate Mode is like putting IP packets through a wire without ethernet headers.

Thunderbolt 1 and 2 did not introduce their own connector type, and instead are borrowing the Mini DisplayPort connector.

Thunderbolt 3 and 4 also avoid using yet another connector type, and instead use the Type-C connector.

How convenient: the Type-C connector has the Alternate Mode for letting the computer know that it is Thunderbolt talking over the wire instead of USB.

This means that a lot more of computers are going to have an external PCIe port, through the Thunderbolt encapsulation, through the Type-C connector. For instance, we can already find adapters that lets you plug regular PCIe devices like a graphic card over a cable!

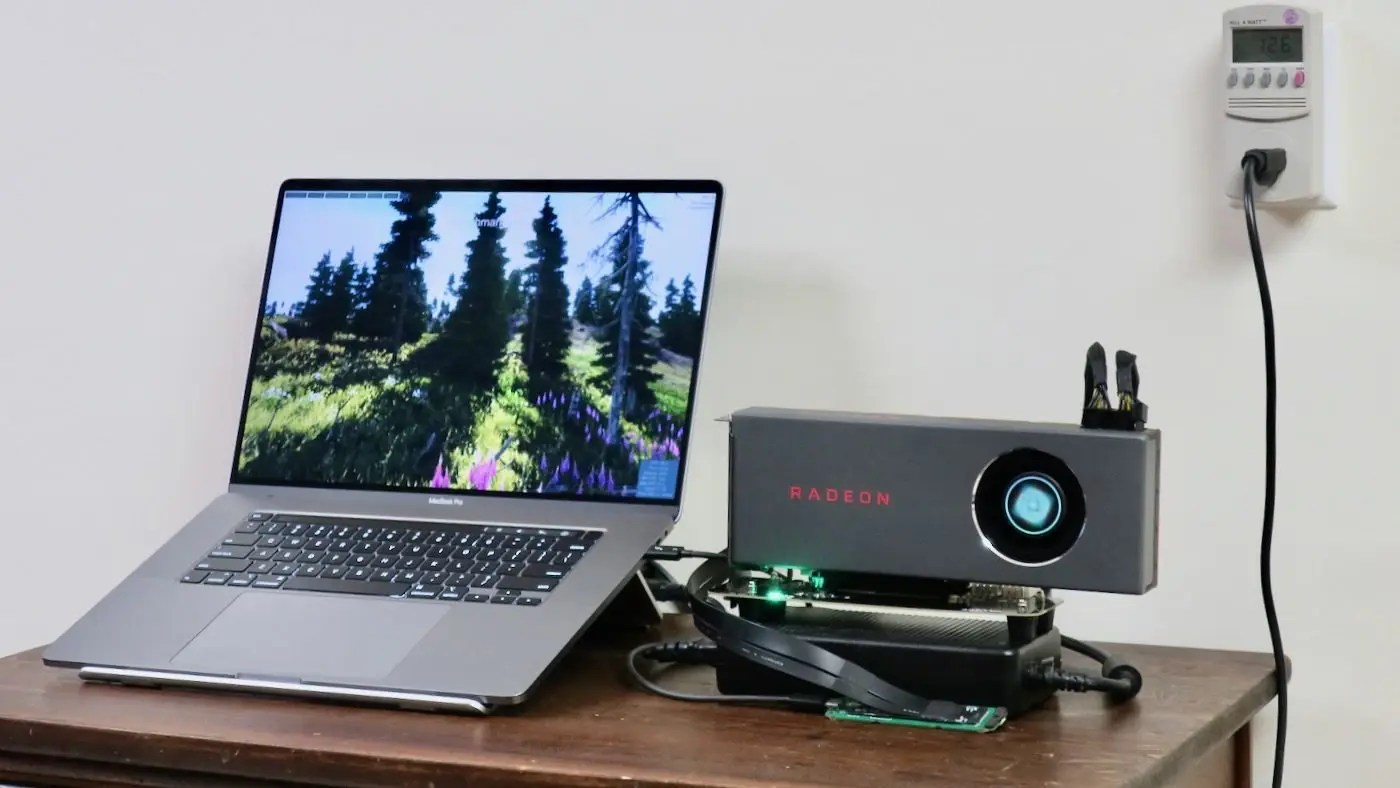

Radeon external GPU over Thunderbolt over Type-C connector

Yes, that means serious gaming on laptop.

USB4: the revenge of Thunderbolt

Over the years, USB had quite a few approaches for sharing a single port for many devices:

In fact, USB4 is Thunderbolt 4. USB and Thunderbolt are now a same and single protocol.

USB4 only is an encapsulation protocol, and cannot connect anything like a mouse or a hard drive. After all, it is Thunderbolt 4, and not USB 4.0.

For that, USB4 encapsulates USB 1.0 (or any other version) onto USB4 packets that are transmitted over a Type-C .

For making things more clear:

With the advent of Thunderbolt 4:

We do not have "yet another USB protocol", instead USB is adopting Thunderbolt 4.

We do not have "yet another thing to negociate before to talk", as Thunderbolt 4 is using the existing Alternate Mode of the Type-C connector to let the computer know what to use.

In fact, the only change is that in addition of PCIe and DisplayPort, Thunderbolt is now able to encapsulate USB (1.0, 2.0 and 3.x).

This has practical advantages, such as allowing a high-speed device like an external NVMe or Screen, as well as a slow-speed device like a keyboard, without limiting everyone at the slow speed.

Thunderbolt logo

Thunderbolt already tried to merge with USB in the past, but the USB Implementation Forum did refuse. It looks like USB-IF changed their mind...

Conclusion

The way of the past was replacing various protocols by USB.

The way of the present is using Alternate Mode for talking various protocols over the same physical port.

The way of the future is using Thunderbolt 4 for encapsulating various protocols on a same packet format.
